Filma Pallet Wrapper
Pallet wrapper
A pallet wrapper is indispensable in most production companies. All products produced by production companies ultimately have to be transported to different distribution locations.
There are a number of criteria to get loads to the end station reliably and damage free:
- Loads must be well stacked. That means no projections or leaning stacks.
- Loads must be well packed. Sufficient stability and a good connection between pallet and load is required. However, it is important that pallets remain ‘open’ for further transport possibilities.

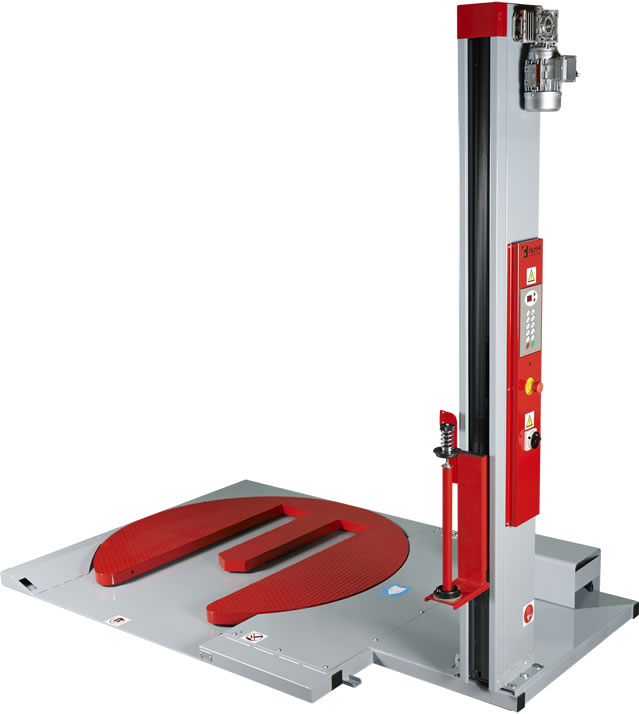

Filma FP10-T-ULTRA
- Standard capacity 2000 Kg
- Predisposition for handling the machine
- FP10-T-ULTRA – FP30-EST – FP30-ST Transpellet entry safety photocell
- Table rotation transmission by chain
- Support wheel
- Necklace hinge (for FP10 ULTRA / FP10-T ULTRA models)
- Pallet height reading photocell
- FP30-ES – FP30-EST – FP30-S – FP / 30-ST Side safety guards

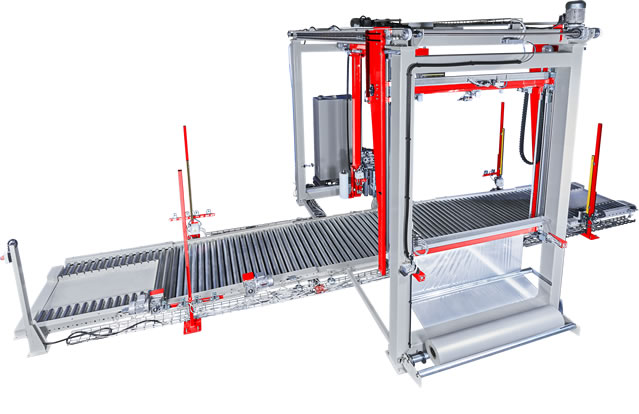

Filma FP6500
- Touch-screen for setting parameters and cycles
- Safety nets H = 2000 with side access doors
- Safety barriers (MUTING) at the entrance and exit of the winder
- Pneumatic device to reduce the film band with flap welding (optional)
- TPneumatic pallet pressing device
- CP670 / AV Motorized pre-stretch of the film with variable ratio from 100% to 300% (1 m = 4 m of pre-stretched film)
- Special heights up to pallets H = 3000 mm

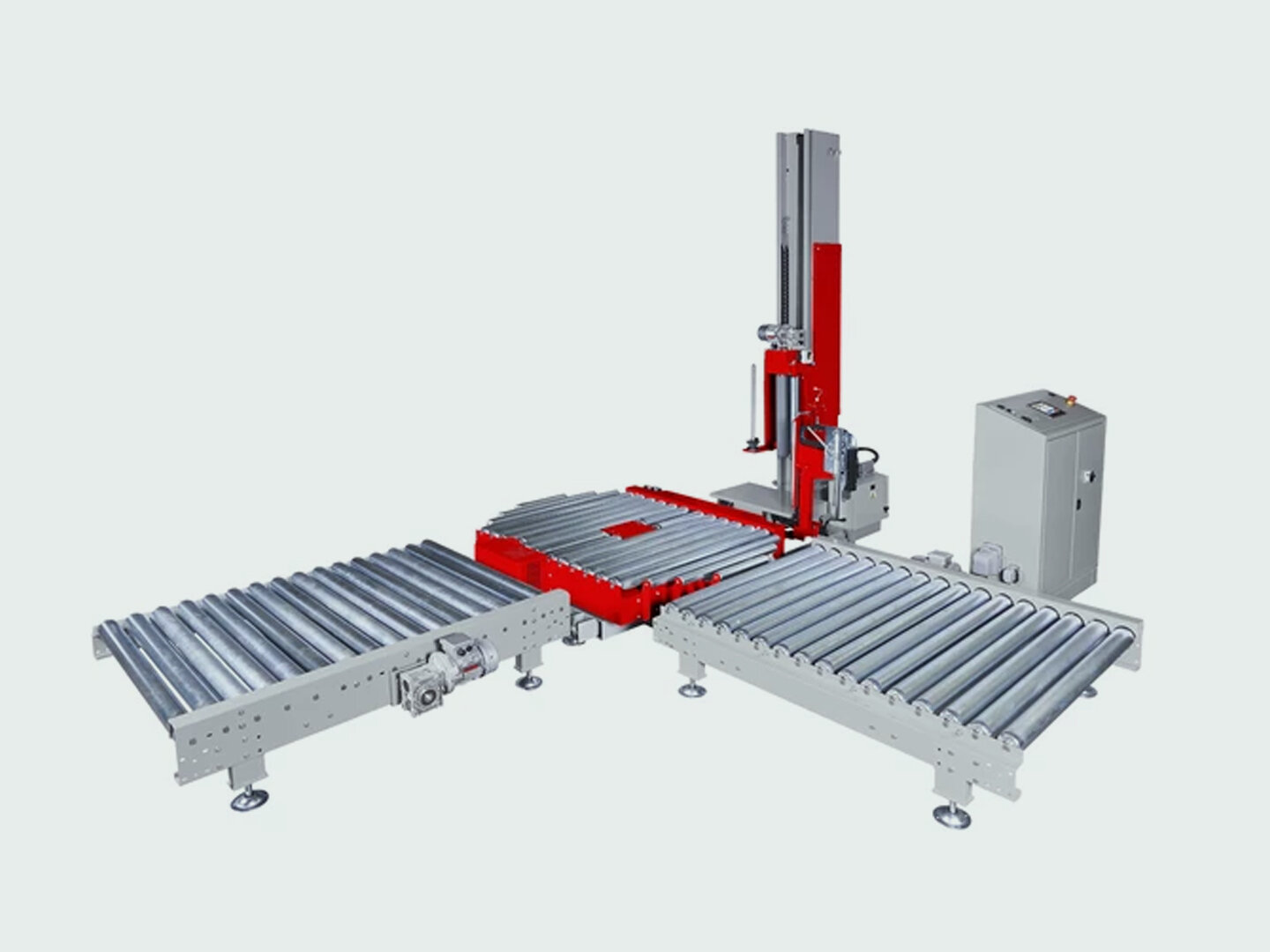

Filma FP460
- Turntable with metal rollers diameter mm. 76 / pitch mm. 95
- Film clamping unit with automatic tilt to optimize the stretch wrapping at the base of the load
- Safety barriers (MUTING) at the entrance and exit of the winder
- Film tail sealer at the end of the cycle and hot wire film cutting unit
- Powered pre-stretch at fixed ratio of 200% (1 mt. = 3 mt. of pre-stretched film)
Filma Taping Machines

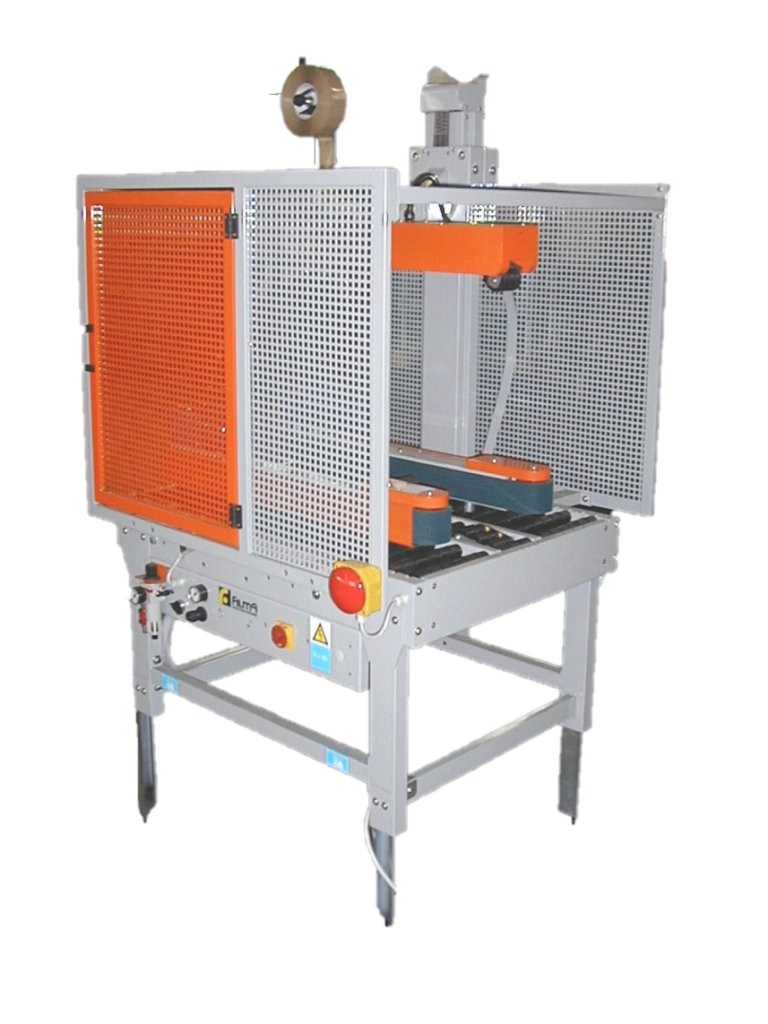

SC1 / 500-A TAPING MACHINE
- no. 2 side drive belts (h = 70 mm)
- box feed speed: 21 mt./min.
- minimum box width: 130 mm
- maximum box width: 500 mm
- minimum box length: 150 mm
- maximum box length: unlimited
- minimum box height: 130 mm
- maximum box height: 550 mm
- no. 2 taping units for closing the lower and upper part of the box at the same time
- max.width of adhesive tape reel: 50 mm (standard) / 75 mm (optional)
- max diameter of the adhesive tape reel: 410 mm
- length of the front / rear flap of the adhesive tape adjustable to 50 mm or 70 mm
- sensors for automatic adjustment of the machine according to the width and height of the box
- compressed air supply: min. 4 / bar – max. 6 / bar
- air consumption: 6 / lt per cycle / box
- selector for repositioning (opening) the upper head and side drive units
- side protections with opening door and bayonet limit switch to stop the machine
- worktop height: adjustable from 550 mm to 750 mm
- standard voltage: 380 v – 50 hz – 3 phase
- machine dimensions: 720 mm x 920 mm (width x length)

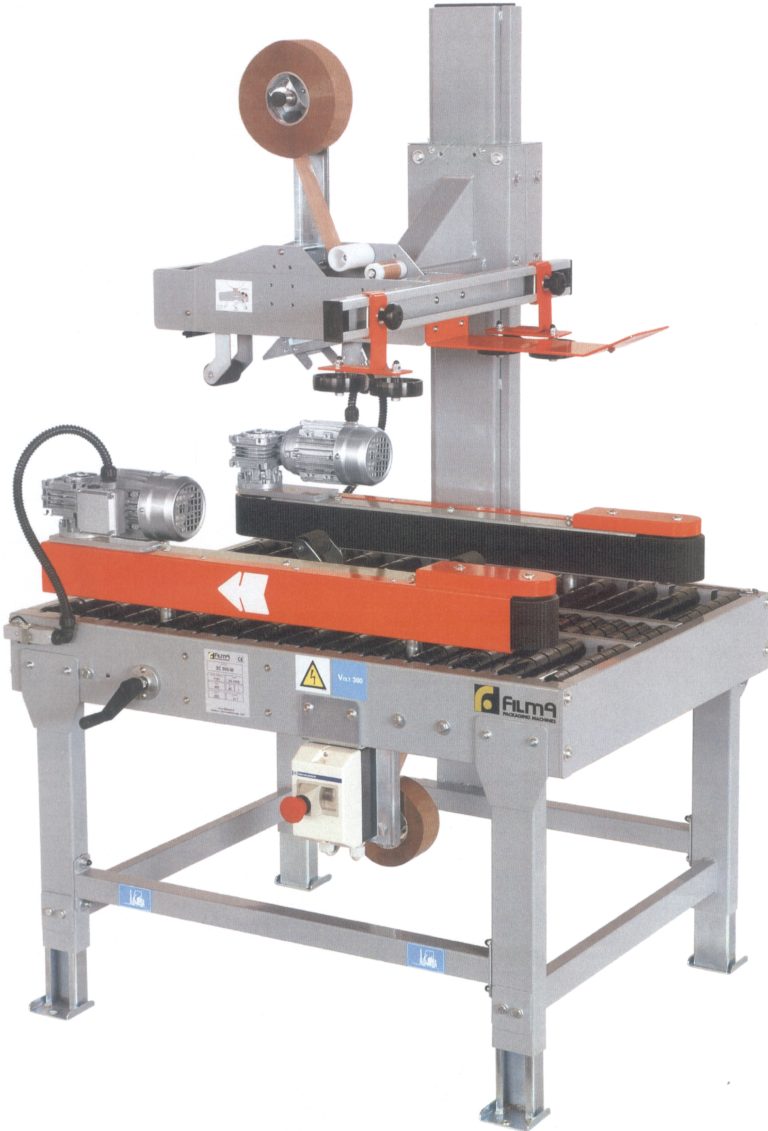

SC1 / 500-M TAPING MACHINE
- no. 2 side drive belts (h = 70 mm)
- box feed speed: 21 mt / min
- minimum box width: 130 mm
- maximum box width: 500 mm
- minimum box length: 150 mm
- maximum box length: unlimited
- minimum box height: 130 mm
- maximum box height: 550 mm
- no. 2 taping units for closing the lower and upper part of the box at the same time
- max.width of adhesive tape reel: 50 mm (standard) / 75 mm (optional)
- max diameter of the adhesive tape reel: 410 mm
- length of the front / rear flap of the adhesive tape adjustable to 50 mm or 70 mm
- handwheel for adjustment according to the width of the box
- knob for adjustment according to the height of the box
- upper pressure rollers (on the side)
- worktop height: adjustable from 550 mm to 750 mm
- standard voltage: 380 v – 50 hz – 3 phase
- machine dimensions: 720 mm x 920 mm (width x length)
